Sensor
|
Sensor Type
|
1.0-type (13.2 mm x 8.8 mm) Exmor RS CMOS sensor, aspect ratio 3:2
|
Number of Pixels (Effective)
|
Approx. 20.1 Megapixels
|
Lens
|
Lens type
|
ZEISS Tessar T* Lens, 6 elements in 6 groups
|
F-number (Maximum Aperture)
|
F2.0
|
ND Filter
|
-
|
Focal length (f=)
|
f = 7.6 mm
|
ANGLE OF VIEW (35 MM FORMAT EQUIVALENT)
|
94° (20 mm)
|
Focus Range (From the Front of the Lens)
|
Approx. 0.17 ft (5 cm) to Infinity
|
Optical Zoom
|
-
|
Clear Image Zoom (Still Image)
|
20M Approx. 2x / 10M Approx. 2.8x / 5.0M Approx. 4x
|
Clear Image Zoom (Movie)
|
4K: 1.5x
HD: Approx. 2x
|
Digital Zoom (Still Image)
|
20M Approx. 4x / 10M Approx. 5.6x / 5.0M Approx. 8x
|
Digital Zoom (Movie)
|
Approx. 4x
|
Filter Diameter
|
φ40.5
|
Screen
|
Screen Type
|
7.5 cm (3.0 type) (4:3) / 921,600 dots / Xtra Fine / TFT LCD
|

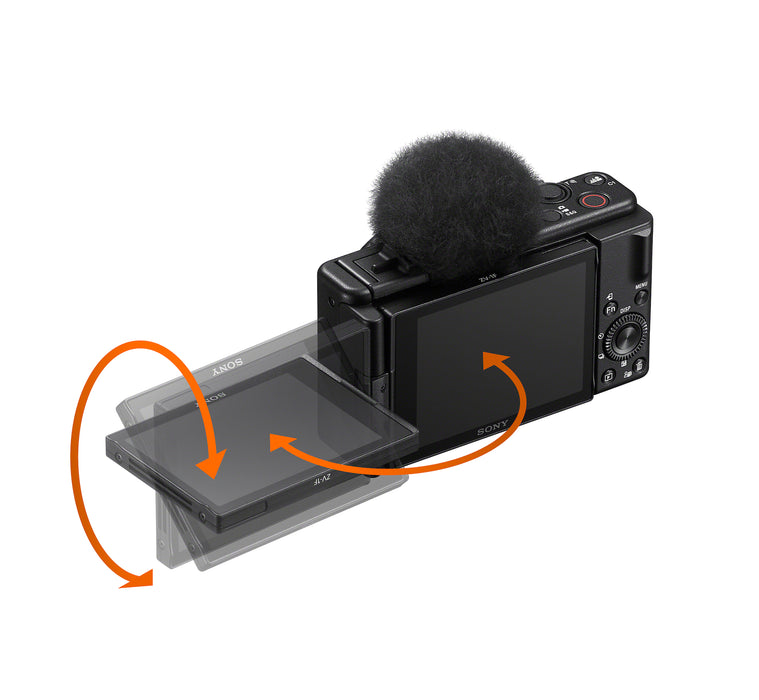

Adjustable Angle
|
Opening angle: approx. 176 deg., Rotation Angle: approx. 270 deg.
|
MS Assist Magnification
|
1.6x, 4.0x
|
Touch Panel
|
Yes
|
Viewfinder
|
Screen Type/Number of Dots
|
-
|
Camera
|
Image Processing Engine
|
Yes (BIONZ X)
|
STEADYSHOT (STILL IMAGE)
|
Electronic
|
Focus Type
|
Contrast-detection AF
|
Focus Mode
|
Single-shot AF, Continuous AF, Manual Focus
|
Focus Area
|
Wide (425 points(contrast-detection AF)), Zone, Center, Flexible Spot (S/M/L), Expanded Flexible Spot
|
OBJECT TRACKING
|
Yes (Tracking)
|
EYE AF
|
[Still images] Human (Right/Left Eye Select) / Animal; [Movie] Human
|
Light Metering Mode
|
Multi Pattern, Center-Weighted, Spot, Entire Screen Avg, Highlight
|
Exposure Compensation
|
+/- 3.0EV, 1/3EV step
|
ISO Sensitivity (Still Image)(Recommended Exposure Index)
|
Auto (ISO 125–6400),125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO 80/100)
|
ISO Sensitivity (Movie)
|
Auto:(ISO 125 Level–ISO 6400 Level),125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800
|
White Balance Modes
|
Auto, Daylight, Shade, Cloudy, Incandescent, Fluor.: Warm White, Fluor.: Cool White, Fluor.: Day White, Fluor.: Daylight, Underwater Auto, C.Temp./Filter, Custom
|
WB Micro Adjustment
|
Yes (G7 to M7, 57 step) (A7 to B7, 29 step)
|
Electronic Shutter
|
Program Auto (1/4"–1/32000) / Manual (1/4"–1/32000) / Aperture Priority (1/4"–1/32000) / Shutter Priority (1/4"–1/32000)
|
Aperture
|
Program Auto (F2/F8) / Manual (F2/F8) / Shutter Priority (F2/F8) / Aperture Priority (F2/F8)
|
Image Control
|
Contrast, Saturation, Sharpness, Creative look, Color Space, Quality (JPEG (Extra fine, Fine, Standard))
|
Noise Reduction
|
high ISO NR: Normal/Low/Off
|
Dynamic Range Functions
|
Off, Dynamic Range Optimizer (Auto/Level 1-5)
|
Shooting Mode
|
Auto (Intelligent Auto), Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, Movie Mode (Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, Movie Auto (Intelligent Auto)), S&Q Mode (Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, S&Q Auto (Intelligent Auto))
|
Continuous Shooting Speed (maximum) (with max. recording pixels)
|
Speed Priority Continuous Shooting: approx. 16fps, Continuous Shooting: approx. 3.5fps7, 8
|
Self-Timer
|
10 s / 5 s / 2 s / self timer(movie)
|
Drive Modes
|
Single, Continuous shooting, Self-timer
|
INTERVAL REC
|
Yes (1–60 s interval, 1–9,999 shots, AE lock/AE tracking(High/Mid/Low))9
|
Panorama (Shooting)
|
-
|
Picture Profile
|
off/PP1-PP10 (Black Level, Gamma (Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1, HLG2, HLG3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset)
|
Flash
|
Flash Type
|
-
|
Bracketing
|
-
|
External Flash Mode
|
-
|
Recording
|
Compatible Recording Media
|
[XAVC S (100 Mbps)] SDXC/SDHC Memory Card (UHS-I U3 or higher); [XAVC S (60 Mbps/50 Mbps)] SDXC/SDHC Memory Card (Class 10 or higher); [Still image] Memory Stick Duo, Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro10, Memory Stick Micro (Mark2)10, SDXC/SDHC/SD Memory Card (Class 4 or higher), micro SDXC/SDHC/SD Memory Card (Class 4 or higher)10, 11
|
Recording Format
|
[Still Image]: JPEG(DCF Ver. 2.0,Exif Ver. 2.32, MPF Baseline compliant), [Movie]: XAVC S
|
Recording Format (Movie Audio)
|
XAVC S:LPCM 2ch
|
Color Space (Still)
|
sRGB, Adobe® RGB
|
DCF/DPOF
|
DCF/EXIF/MPF
|
Still Image Number of recorded pixels (Image Size)
|
3:2 mode: 20M (5472 x 3648) / 10M (3888 x 2592) / 5M (2736 x 1824), 4:3 mode: 18M (4864 x 3648) / 10M (3648 x 2736) / 5M (2592 x 1944) / 16:9 mode: 17M (5472 x 3080) / 7.5M (3648 x 2056) / 4.2M (2720 x 1528),1:1 mode: 13M (3648 x 3648) / 6.5M (2544 x 2544) / 3.7M (1920 x 1920)
|
Movie Recording Mode (NTSC)
|
NTSC/PAL Selector: [NTSC] XAVC S 4K: 30p 100 M (3840 x 2160/30p)/30p 60 M (3840 x 2160/30p)/24p 100 M (3840 x 2160/24p)/24p 60 M (3840 x 2160/24p), XAVC S HD: 60p 50 M (1920 x 1080/60p)/60p 25 M (1920 x 1080/60p)/30p 50 M (1920 x 1080/30p)/30p 16 M (1920 x 1080/30p)/24p 50 M (1920 x 1080/24p)/120p 100 M (1920 x 1080/120p)/120p 60 M (1920 x 1080/120p)
|
Movie Recording Mode (PAL)
|
NTSC/PAL Selector: [PAL] mode XAVC S 4K: 25p 100 M (3840 x 2160/25p)/25p 60 M (3840 x 2160/25p), XAVC S HD: 50p 50 M (1920 x 1080/50p)/50p 25 M (1920 x 1080/50p)/25p 50 M (1920 x 1080/25p)/25p 16 M (1920 x 1080/25p)/100p 100 M (1920 x 1080/100p)/100p 60 M (1920 x 1080/100p),
|
Still Image Number of recorded pixels (Image Size) during Movie
|
XAVC S 4K: 8.3M (3840 x 2160)
XAVC S HD: 2.1M (1920 x 1080)
|
Proxy Recording
|
Yes (1280 x 720 (Approx. 9 Mbps))
|
Interface
|
Input and Output Terminals
|

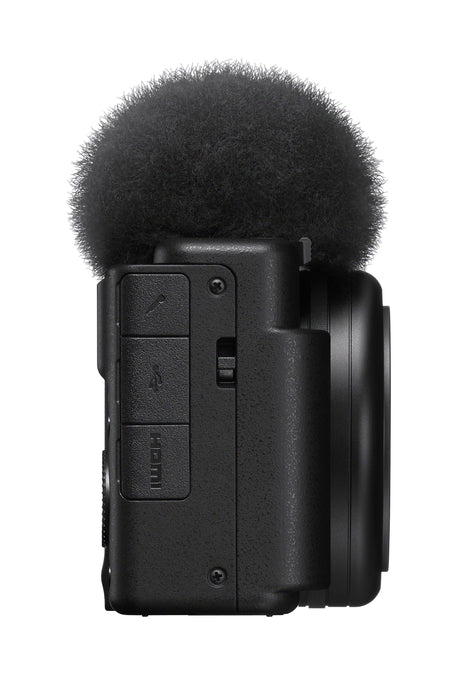

USB Terminal Type-C (USB 2.0), Micro HDMI, Microphone jack (3.5 mm Stereo mini jack)
|
NFC
|
-
|
WI-FI
|
Yes(IEEE802.11b/g/n(2.4GHz band))
|
Interfaces
|
-
|
Bluetooth
|
Yes (Bluetooth Standard Ver. 4.1 (2.4 GHz band))
|
Power
|
Power Source
|
DC 3.6 V (supplied battery)
|
Battery System
|
Rechargeable battery pack NP-BX1
|
Power Consumption (Camera Mode)
|
Approx. 1.5 W with LCD monitor (CIPA standard)
|
USB Charge/USB Power Supply
|
Yes (Shooting, Playback)
|
BATTERY LIFE(STILL IMAGES)(CIPA)
|
Monitor: Approx. 360 / Approx. 180 min, Monitor (When Auto Monitor off is set to 2 s): Approx. 540 / Approx. 270 min,12
|
BATTERY LIFE(MOVIES ACTUAL SHOOTING)(CIPA)
|
Monitor: Approx. 60 min13, 14
|
BATTERY LIFE(MOVIES CONTINUOUS SHOOTING)(CIPA)
|
Monitor: Approx. 90 min13
|
Others
|
PlayMemories Camera Apps
|
-
|
Shooting Functions
|
Shot Mark, Screen Reader, Soft Skin Effect, Product Showcase Set, Background Defocus, Step Zoom, Face Detection, Face Registration, Grid Line, Digital Level Gauge (pitch and roll), Peaking (Display: Off/On) (Level: High/Mid/Low) (Color: Red/Yellow/Blue/White), Zebra, Marker Display, Audio Rec Level, Audio Level Display, PC Remote Control, Gamma Disp. Assist, Set File Name, Touch Shutter/Touch Focus/Touch Tracking, My Menu
|
Playback Functions
|
BRAVIA Sync (Control for HDMI), 9/25-frame index view, Auto Orientation, Slide Show, Forward/Rewind (Movie), Delete
Protect, Photo Capture, Rating, Automatic Image Rotation,
|
TRILUMINOS Color
|
Yes15
|
4K image output
|
Yes
|
Operating Temperature
|
0 degrees C. - +40 degrees C. / 32 degrees F. - 104 degrees F.
|
Print
|
Print
|
Exif Print, PRINT Image Matching (PIM3)
|
Size & Weight
|
DIMENSIONS (W X H X D) (APPROX.)
|
4.15" x 2.36" x 1.83"
(105.5 mm x 60.0 mm x 46.4 mm)
|
WEIGHT (CIPA COMPLIANT)
|
Approx. 9.1 oz (256 g) (Battery and Memory Card are included) / Approx. 8.1 oz (229 g) (Body Only)
|
Supplied Accessory
|
WHAT'S IN THE BOX
|
Lens cap, Rechargeable Battery Pack (NP-BX1), Type-C USB cable (USB 2.0), Wind Screen, Wind Screen Adaptor, Instruction Manual
|
